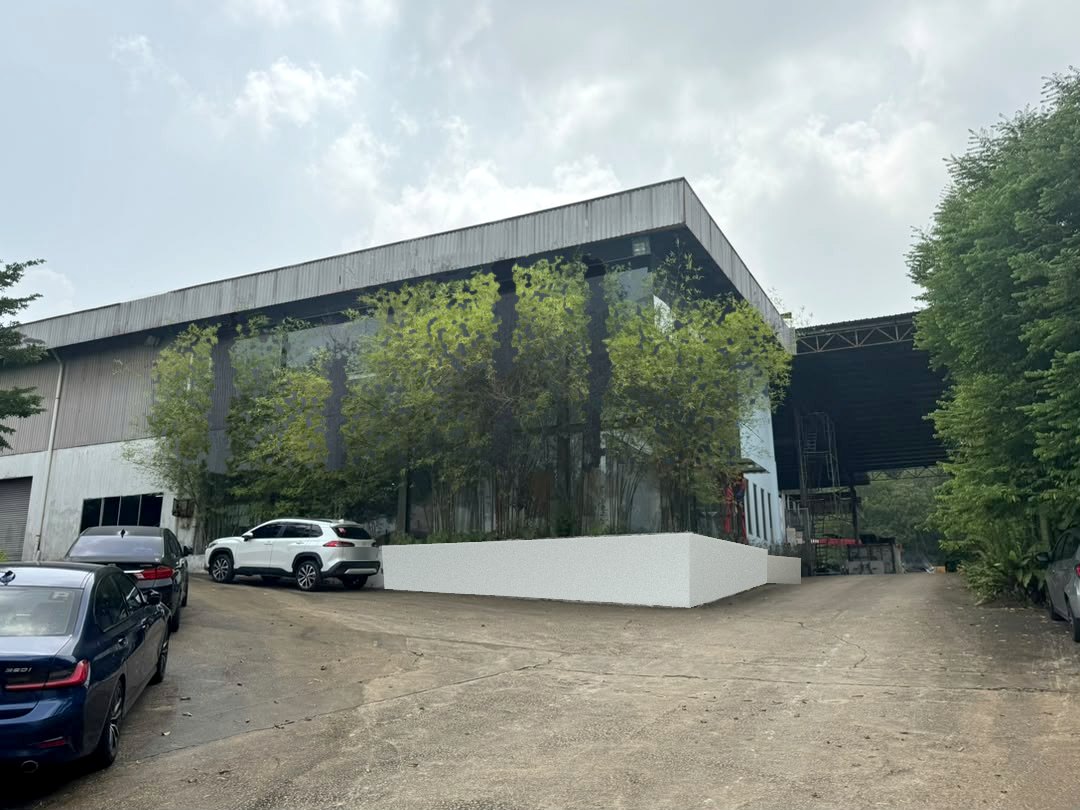

The Sama Mahir factory in Masai, Johor
Casting & engineering · Johor, Malaysia

From your drawing to a finished casting.

Sand, gravity-die and investment castings in iron, steel, aluminium and bronze, with pattern-making, CNC machining and inspection under one roof — from first prototype to full production.

Since 1972
5 decades of experience in metal casting
30+
Long-term clients, many with us for over 10 years
100%
Malaysian-owned and run — and proudly so
Our Work

Castings we've made

A few pieces from our showroom: a flanged valve body, a bronze propeller, a ship's porthole, motor housings, wear plates and machined aluminium parts.

See what we can make
A display of castings made by Sama Mahir: a flanged valve body with two pipe hangers, a ship's porthole with its cover open, a bronze propeller, an electric motor housing, cast iron wear plates, a ribbed wheel, a machine base, machined aluminium sleeves and bushes, an aluminium handle, and smaller pieces including a crest for the Singapore Police Force and a lamp guard
More of our work

From pump impellers to heritage gates

Photographs from our own floor and from site: parts we have cast and machined for industry, and the ornamental castings we have made and restored for buildings and public spaces.

Download our past projects (PDF, 6.7 MB)

Recent industrial jobs

Cast iron base plate, a similar part we made
Machinery · Penang

Brackets and machine bases for an equipment maker

Material
Grey cast iron, ASTM Class 25 and Class 30
Our work
Brackets cast and CNC-machined on the customer’s own pattern; machine bases added in 2026
Orders
Repeat orders since 2022
Photo: a similar part we made
Bronze closed impeller, a similar part we made
Marine · Singapore

Seawater pump impeller for a marine engineering firm

Material
Bronze
Size
OD 138 mm, 5 vanes
Our work
Casting from the customer’s sample (no new pattern needed), then machining
Year
2026
Photo: a similar part we made
Machined closed impeller, a similar part we made
Pumps · Johor

Closed impeller remade from a 3D model

Material
Bronze
Size
OD 260 × H 160 mm, 6 vanes
Our work
A new pattern from the customer’s 3D model, then casting and machining
Year
2026
Photo: a similar part we made

A ZEISS CMM inspection report can be supplied on request.

Have a part like these? Send one drawing
Our clients

Trusted by leading manufacturers

We're proud to have supplied leading names across manufacturing and engineering.

Mazak Optonics logo
Mazak Optonics
Panasonic logo
Panasonic
Flextronics logo
Flextronics
Lum Chang Creations logo
Lum Chang Creations
Epson logo
Epson
Philips logo
Philips
TECO Westinghouse logo
TECO Westinghouse
NatSteel logo
NatSteel
Leica Geosystems logo
Leica Geosystems
ASTI logo
ASTI
Baker Hughes logo
Baker Hughes
Bucher Emhart Glass logo
Bucher Emhart Glass
and many more
What we do

Hand us the part. We will think of everything else.

Bring us a drawing, or only an idea, and the whole of the work becomes ours: the method and the metal, the pattern and the pour, the machining, the inspection and the delivery, all under one roof.

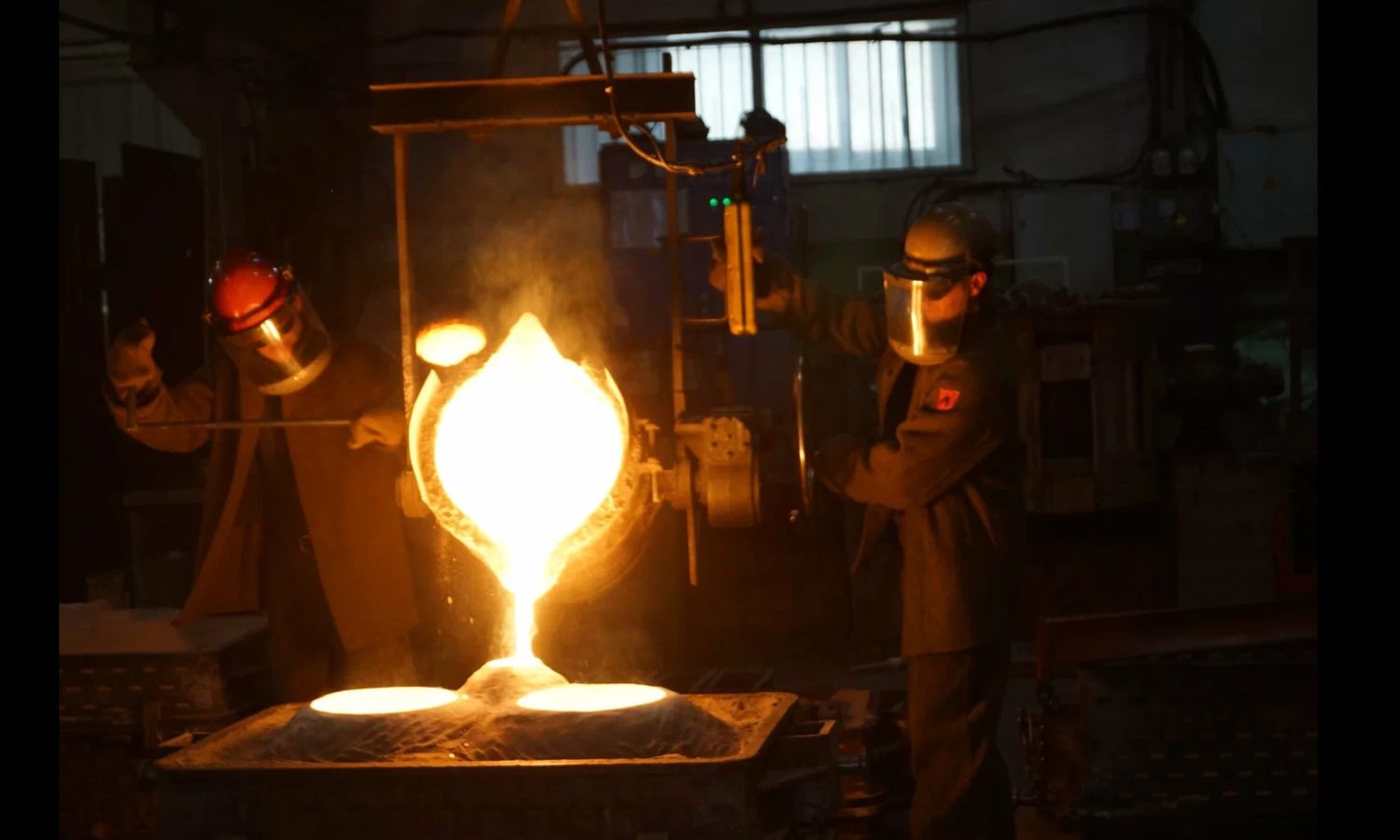

Molten metal poured from a ladle into a sand mould on the foundry floor

Sand casting

The craft we were founded on.

More than 50 years of sand casting behind each of our senior moulders

Some have made our moulds almost since the company began. Dedicated to the craft ever since, they sit down with your engineers over every drawing.

Casting

  1. Sand casting

    The process the company was founded on, and still the one it is known for. Our senior moulders read how a mould will feed, and where a heavy section will draw, before any metal is poured.

    Request a quotation Sand casting in detail
  2. Gravity die casting

    Metal poured under gravity alone into a permanent steel die: a denser, more consistent part than sand, with a finer surface straight from the mould. The natural choice once a design is settled and orders repeat.

    Request a quotation Aluminium gravity die casting
  3. Investment casting

    Also known as lost-wax casting. A wax pattern is coated in ceramic and melted out, and the metal takes the precise shape it leaves, so fine features are cast rather than machined.

    Request a quotation

Around the pour

  1. Engineering & design

    Bring a finished drawing or only an idea. We model the part, review it for manufacture and recommend the metal and the method; where a small change would make it sounder, we propose it, and the decision stays yours.

    Request a quotation
  2. Patterns & tooling

    A good casting begins with a good pattern. Ours are made and maintained in our own pattern shop, so the hundredth casting matches the first, and a revision is taken on without waiting on anyone else.

    Request a quotation
  3. CNC machining

    The raw casting leaves our machine shop as a finished component, machined to the tolerances on your drawing and ready to assemble. With casting and machining under one roof, the machining allowance is settled when the mould is designed.

    Request a quotation
  4. Quality inspection

    Quality is built in at every stage rather than inspected in at the end. Parts are checked as they move through the works, what we find is recorded, and our quality management system is certified to ISO 9001.

    Request a quotation
  5. Packing & delivery

    Your parts are packed to arrive exactly as they left us, and delivered to your site, port or warehouse. Export shipping can be arranged on request.

    Request a quotation

Proudly and wholly Malaysian. Owned and run in Johor since 1972.

Request a quotation
Capabilities

What we can make for you

The range we work in. If your part sits outside it, ask us anyway: we'll tell you straight whether we can make it.

3
casting processes: sand, gravity-die and investment
6
alloy families, ferrous and non-ferrous
1.5 t
melting capacity: two furnaces of 750 kg each

Materials we cast

Five decades at the furnace have taught us how each metal fills a mould, feeds and cools. What each one is good for, and some of the parts we cast in it:

Grey iron

It machines cleanly, damps vibration and keeps its shape under load, which makes it the natural choice for machine bases, housings and pump bodies, and the most economical of the cast irons.

Parts we cast in it
  • Pump impellers
  • Pump casings
  • Bearing housings
  • Gears and pulleys
  • Machine bases
Grey and ductile iron castings

Ductile iron

Round (SG) graphite gives it much of the strength and toughness of steel while it still casts like iron, so it takes pressure and shock: valve bodies, pipe fittings and brackets.

Parts we cast in it
  • Gears
  • Couplings and hubs
  • Rolling-mill guides
  • Pump wear plates
  • Valve bodies
Ductile iron, cast in-house

Steel

Carbon and low-alloy cast steels carry the heaviest loads, and can be welded and heat-treated, for parts that must not fail under impact.

Parts we cast in it
  • Sprocket wheels
  • Bogie wheels
  • Chain links
  • Bearing housings
  • Guide rollers

Stainless steel

Chromium-nickel grades resist corrosion in water, chemicals and food service, for pump, valve and marine parts that must stay clean and sound.

Parts we cast in it
  • Pump impellers
  • Pump casings
  • Pump body rings
  • Screw conveyor spirals

Aluminium

About a third of the weight of iron, it resists corrosion and machines quickly, and cast in permanent steel dies it holds sharp detail and a repeatable size.

Parts we cast in it
  • Housings and covers
  • Fan blades and hubs
  • Power-line grading rings
  • Brackets and clamps
  • Ship’s portholes
Aluminium casting

Brass & bronze

Copper alloys resist seawater and wear, and run smoothly against steel, which is why propellers, bushes, bearings and marine fittings are made in them.

Parts we cast in it
  • Pump impellers
  • Bushes
  • Stern tubes
  • Casing rings
  • Marine propellers
Bronze and brass casting

In our machine shop

3 × Pinnacle LV117 CNC vertical machining centres

Travel 1140 × 710 × 610 mm · table 1300 × 700 mm, for parts up to 1,000 kg · 24-tool automatic changer

Quality

How we ensure quality

We inspect your parts through every stage, not only at the end, and keep a record of what we find. Our quality management system is certified to ISO 9001:2015.

  • Dimensional inspection against your drawing
  • Material and hardness testing
  • In-process checks at every stage
  • Documented quality records

Our certification

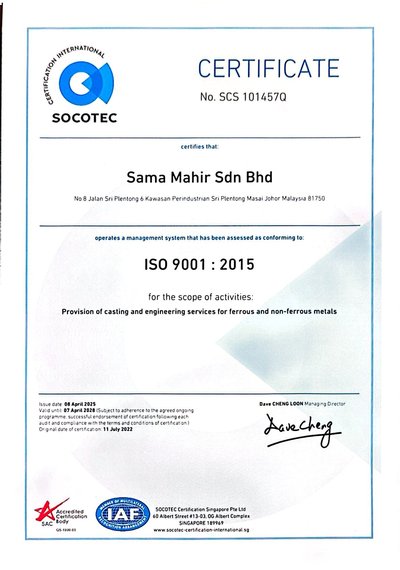

Sama Mahir's ISO 9001:2015 certificate, issued by SOCOTEC
ISO 9001:2015 Certified by SOCOTEC Certification International, an SAC-accredited certification body.
Scope
Casting and engineering services in ferrous and non-ferrous metals
Certificate no.
SCS 101457Q
Valid to
7 April 2028
Download the certificate (PDF)

Some of the equipment we work with

  1. Pinnacle LV117 CNC vertical machining centres

    Three Taiwanese-built machining centres on linear guideways, each with a 24-tool automatic changer. They machine your castings to finished size in our own shop, so they leave us ready to fit.

    3
    machines in our shop
    1140 × 710 × 610 mm
    travel, X × Y × Z
    1300 × 700 mm
    table, for parts up to 1,000 kg
    0.018 mm
    rated repeatability, ISO 10791-4
    24
    tools in the automatic changer
  2. ZEISS SPECTRUM coordinate measuring machine

    A CNC bridge-type coordinate measuring machine. It checks your parts in three dimensions against your drawing or CAD model and records every result, with glass-ceramic scales on all three axes and built-in vibration damping to keep its readings true.

    700 × 1000 × 600 mm
    measuring volume
    (1.8 + L/250) µm
    rated length accuracy, ISO 10360-2
  3. ZEISS VAST XXT scanning probe

    It scans along a surface instead of touching it point by point, so forms and profiles are measured in full rather than sampled. Its ruby-tipped styli on tungsten-carbide shafts reach small features down to a 1.5 mm tip.

    30–150 mm
    stylus lengths
    1.5 mm
    smallest ruby tip
  4. ZEISS RDS articulating probe head

    It turns the probe on two axes, ±180° each in 5° steps, so most faces of a part can be reached in a single set-up.

    5,184
    probe positions
    5°
    steps on both axes
  5. ZEISS Multi-Sensor Rack

    The machine changes its own styli from the rack during a program, so a part with deep bores, small holes and flat faces is measured in one run.

    6
    stylus positions
  6. ZEISS CALYPSO measuring software

    Measuring programs are built straight from your CAD model, and every result is documented in a ZEISS PiWeb inspection report.

And many more machines to ensure the quality of our production.

Recognition

Trained, certified and recognised

The certificates behind our people and our processes: workplace safety, the environment, quality and skills.

Certificates and appointments

  1. URA Architectural Heritage Awards 2026 certificate: Special Mention for Technical Care and Excellence at Tan Kim Seng Fountain, naming Sama Mahir Sdn Bhd as specialist foundry 2026 Specialist foundry, Tan Kim Seng Fountain URA Architectural Heritage Awards 2026, Singapore

    The fountain’s restoration received a Special Mention for Technical Care and Excellence, and Sama Mahir is named on the certificate as its specialist foundry.

  2. Certificate of participation in SOLVE 4 SME 2025 from JKKP Malaysia, awarded to Sama Mahir Sdn Bhd 2025 SOLVE 4 SME workplace safety programme Department of Occupational Safety and Health (JKKP), Ministry of Human Resources

    Sama Mahir completed the government’s stepwise safety verification and enhancement programme for small and medium enterprises.

  3. Certificate of competency in scheduled waste management from the Department of Environment Malaysia 2024 Competent person in scheduled waste management (CePSWaM) Department of Environment Malaysia

    Puan Sri Kelly Wong is certified by the Department of Environment as a competent person for scheduled waste: first in 2023, and again in 2024.

  4. Certificate of appointment as Honorary Advisor of the Penang Foundry & Engineering Industries Association 2023–2026 Honorary Advisor, PENFEIA Penang Foundry & Engineering Industries Association

    Tan Sri Roy Tan sits on the association’s advisory panel for its 22nd term.

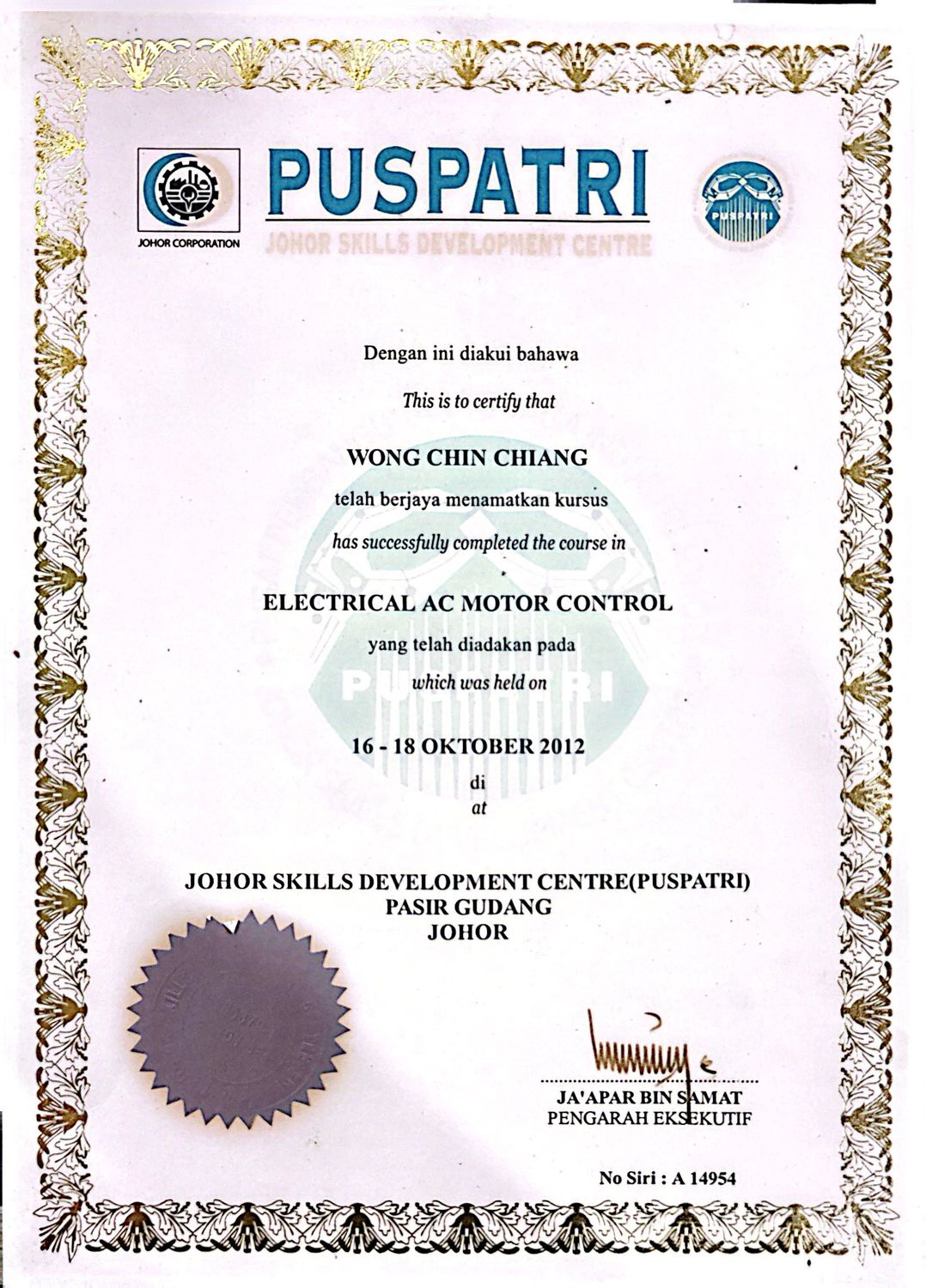

  5. Course certificate from PUSPATRI, the Johor Skills Development Centre 2012 Industrial skills courses PUSPATRI, Johor Skills Development Centre

    Industrial pneumatics, AC motor control and motor troubleshooting, for the team that keeps our plant running.

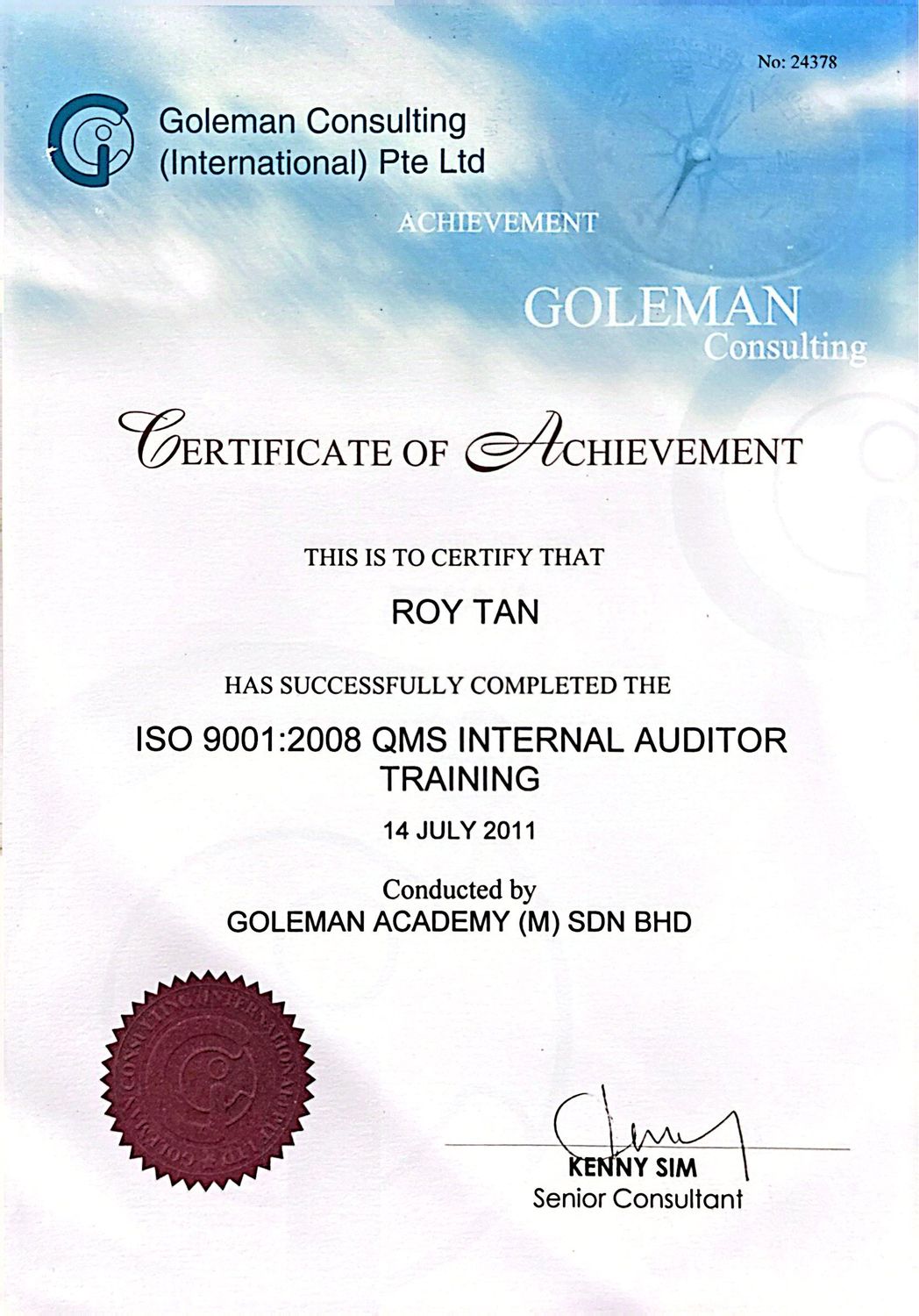

  6. Certificate of achievement for ISO 9001 quality management system internal auditor training 2011 ISO 9001 internal auditor training Goleman Academy (M) Sdn Bhd

    Our management trained as internal auditors of an ISO 9001 quality management system.

  7. Mastercam certificate of attendance for the advanced NC programming course in Mastercam X Mill 2007 Mastercam CNC programming, basic and advanced IME CADCAM Training Centre

    NC programming training in Mastercam X Mill for our machining team.

Our history

From San Hak Seng to Sama Mahir

Ours is a history of more than fifty years, two names and one trade: casting metal for industry.

  1. 1972Founded as San Hak Seng Manufacturer Sdn Bhd.
  2. 1998Sama Mahir Sdn Bhd established to take the business forward.
  3. TodayCertified to ISO 9001:2015, serving more than 30 long-term clients, and renovating and expanding the Masai plant.

Wholly Malaysian-owned, and proud of it.

Industry roles

Our team

The people behind Sama Mahir

Decades of casting, engineering and industrial experience, leading the work from your first enquiry to the finished part.

  • Portrait of Tan Sri Roy Tan Tan Sri Roy Tan Managing Director & Founder

    More than 30 years of casting experience, and Honorary Advisor to PENFEIA.

  • Portrait of Ryan Tan Ryan Tan Business and Development Manager

    Looks after sales, from your first enquiry to the order.

  • Portrait of Fiona Li Fiona Li Sales & Marketing

    Also looks after accounts and after-sales follow-up.

  • Portrait of Wong Chin Chiang Wong Chin Chiang Head Engineer

    More than 30 years of engineering experience.

  • Portrait of Puan Sri Kelly Wong Puan Sri Kelly Wong Environmental Professional

    Certified by the Department of Environment to manage our scheduled waste (CePSWaM).

How we work

From your drawing to delivery, in five steps

A clear path from first contact to finished parts, with one team looking after your order the whole way.

  1. Send your drawing

    Share your drawing or 3D model, the material and the quantities you need.

  2. Review and quote

    Our engineers check it for manufacturability and send your quote, with suggestions wherever we see a better way to make it.

  3. Pattern and samples

    We make the pattern and cast first samples for your approval.

    About 3–4 weeks
  4. Production

    Once you approve, we cast, machine and inspect your parts.

    A full container in about 6–8 weeks
  5. Delivery

    Packed for transit and delivered to your site, port or warehouse.

Have a project, or a part that needs casting?

Send us your drawing or specification. Our engineers will review it and come back to you with a quote, and with suggestions wherever we see a better way to make it.

Start your enquiry
Get in touch

Let's talk about your part

Send us one drawing, and we’ll reply with a price and a lead time. A photo or a sample works too.
